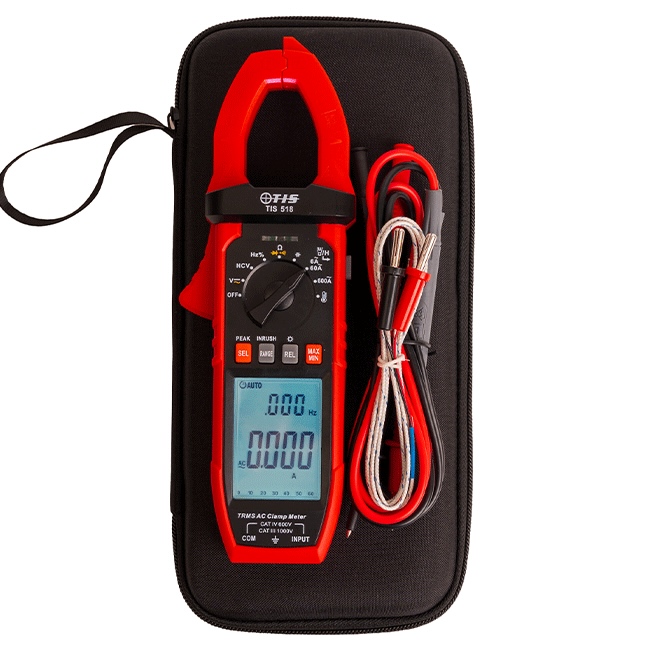

The TIS 518 is part of our range of TRMS digital auto ranging clamp meters. This unit has many features, including a non contact voltage detector, plus AC/DC voltage, AC current, resistance, continuity buzzer, max hold, data hold, diode test, auto power off, jaw work light and display light. The TIS 518 is an ideal instrument for the everyday electrician / maintenance.
SPECIFICATION :
Display Count: 6000 Counts
LCD Size: 36 x 50.5mm
DC Voltage: 600mV - 1000V
AC Voltage: 6V - 1000V
AC Current: 6A - 600A
Resistance: 600Ω - 60MΩ
Capacitance: 6nF - 10mF
Frequency: 10Hz - 10MHz
Temperature: -40 Deg C - 1000 Deg C
TRMS: Yes
Range Select: Auto
Dual Jaw Open Size: 34mm
Diode Test: Yes
Continuity Test- Yes
Data Hold: Yes
Min / Max Hold: Yes
Peak Hold: Yes
Analog Bar Display: Yes
Duty Cycle ( 1%-99%): Yes
Inrush Current: Yes
Relativity Function: Yes
NCV Detection: Yes
Live Wire Recognition: Yes
Inbuilt Torch: Yes
Auto Power Off: Yes
Low Battery Indication: Yes
Over Range Indication: Yes
LCD Backlight: Yes
Double Mold Housing: Yes
Battery: AAA 1.5V x 3
Size: 225 x 75 x 35mm
Weight: 250g
CAT III 1000V & CAT IV 600V
EAN Barcode 5060508210092
