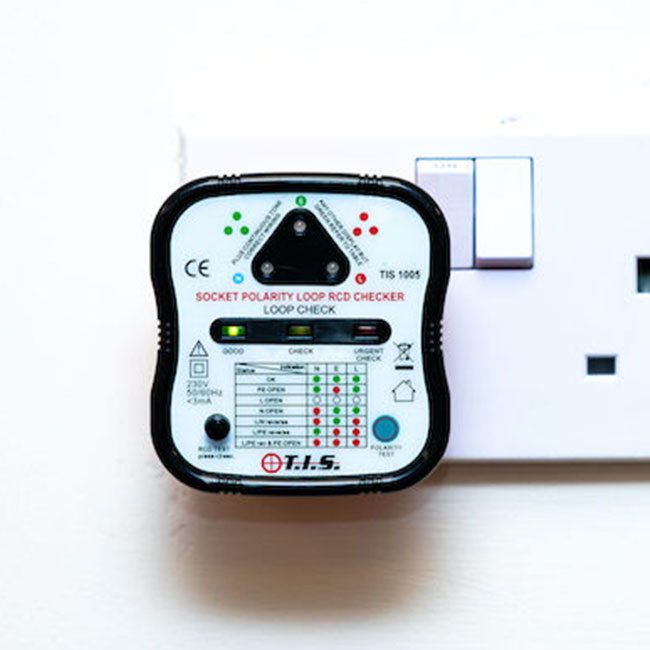

TIS 1005 Audible Socket Tester with Loop and RCD Check

0 Review(s)   (Review this item)
SKU CODE : TIS 1005

The TIS 1005 is a pocket sized checker for indicating loop impedence, socket polarity and RCD 30mA are all ok. Indication is by LED's and buzzer. It is an ideal unit for initial "checking out" of a 13A socket and will advise if the circuit is ok, needs attention, or needs urgent attention. An ideal product for housing associations, landlords, council property departments, shopping centers, electricians etc.

PECIFICATIONS

Basic Functions
•  Nominal Voltage: 230V AC ± 10%, 110V AC ± 10%
•  Frequency Range: 50Hz - 60Hz
•  Contact Voltage Range: <50V AC (Relative to Ground)
•  Overload Protection: AC/DC 300V

Special Functions
•  Earth Loop Check at mains frequency
•  Checks condition of Earth Loop
•  Loop Detection Ranges <1.8Ω, 1.8Ω - 92Ω, >92Ω
•  30mA RCD Test
•  3 Coloured LED's (Green, Amber, Red) give indication of condition
•  Socket checked against all possible fault conditions
•  Microprocessor controlled with built in self check
•  First Socket Tester to indicate actual fault - Live, Neutral or Earth
•  Simple and easy to use
•  Plug in and switch on

GENERAL
Weight: 40g
Size: 72mmx 78mm x 80mm
CE Approved
2 Year Guarantee

EAN Barcode 5060508210047
