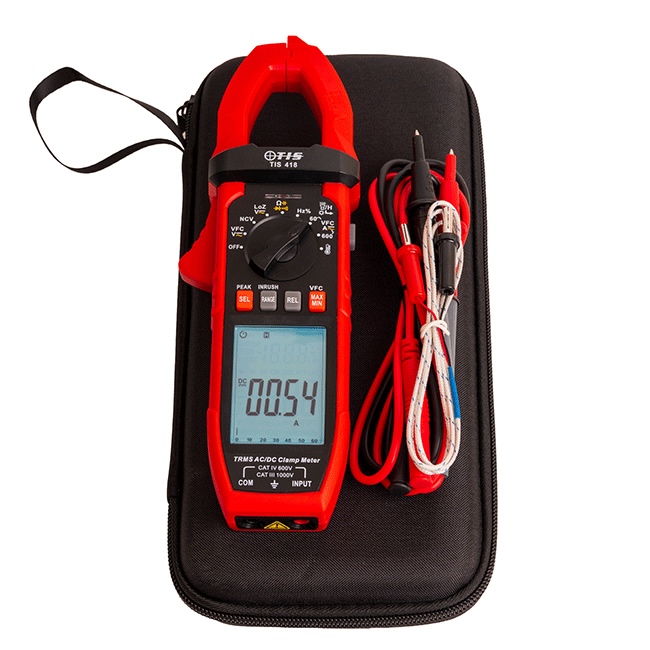

The TIS 418 is a TRMS 600A AC/DC clamp meter which is supplied with a host of features, for the everyday electrician or maintenance electrician. These include AC/DC current, frequency, capacitance, resistance, duty cycle, temperature -40°C to 1000°C, complete with thermocouple. Other features include max/min hold, auto power off, auto ranging, continuity buzzer, data hold, work light, back light and non contact voltage test.
SPECIFICATION:
Display Count: 6000 Counts
LCD Size: 36 x 50.5mm
DC Voltage: 600mV - 1000V
AC Voltage: 6V - 1000V
DC Current: 60A - 600A
AC Current: 60A - 600A
Resistance: 600Ω - 60MΩ
Capacitance: 6nF - 10mF
Frequency: 10Hz - 10MHz
Temperature: -40 Deg C - 1000 Deg C
TRMS: Yes
Range Select: Auto
Dual Jaw Open Size: 34mm
Diode Test: Yes
Continuity Test- Yes
Data Hold: Yes
Min / Max Hold: Yes
Peak Hold: Yes
Analog Bar Display: Yes
Duty Cycle ( 1%-99%): Yes
Loz AC/DC (1000V): Yes
VFC Measurement: Yes
Inrush Current: Yes
Relativity Function: Yes
NCV Detection: Yes
Live Wire Recognition: Yes
Inbuilt Torch: Yes
Auto Power Off: Yes
Low Battery Indication: Yes
Over Range Indication: Yes
LCD Backlight: Yes
Double Mold Housing: Yes
Battery: AAA 1.5V x 3
Size: 225 x 75 x 35mm
Weight: 250g
CAT III 1000V & CAT IV 600V
EAN Barcode: 5060508210511
