TIS 851 LCD and LED Voltage and Continuity Tester with Built in Proving Checker

0 Review(s)   (Review this item)
The TIS 851 is a quality voltage and continuity tester packed full of features
SKU CODE : TIS 851

The TIS 851 is an exclusive voltage and continuity tester, with phase rotation test and a built in proving test that conforms fully to BSEN 61243-3: 2014 and HSE GS38 12B. The TIS 851 is packed with many outstanding features which include will not trip any rcd when testing between live and earth, digital LCD and LED voltage indication, indicates the presence of voltage even if the battery is dead or missing, built in two pole phase rotation test, AC / DC voltage 0 - 690V, single pole phase test, all this plus much more.

SPECIFICATION
• AC/DC Voltage 12V/24V/50V/120V/230V400V/690V ±(3%+3d) or 5V
• Continuity Test 0-1 MΩ
• Phase Rotation Test 3 Phase 4-wire system AC 50/60Hz
• Phase Range 120±5 degree
• Response Time <2s at 90% of each voltage
• Peak Current <3.5mA (at 690V)
• Internal Battery Consumption Approx 33mA (Battery 3V, measuring 690V AC)

SPECIAL FUNCTIONS
• AC/DC Voltage 0V-690V, LED 12V-690V
• Cat III 1000V, CAT IV 600V
• Will not trip RCD when connected Live to Earth
• Loud Continuity Buzzer
• 2 Pole Phase Rotation Test
• Built in Proving Test to comply with HSE GS38, 12b
• Conforms fully to BSEN 61243-3: 2014
• LCD and LED voltage indication
• Polarity Test
• Fast Single Handed Testing on 13A Sockets
• Auto Power on/off, torch light & IP64
• Low Battery Warning
• Complete with padded case
• Heavy duty lead
• Rugged rubberised case & grip
• Indicates presence of voltage with dead or missing battery

GENERAL CHARACTERISTICS
Power 1.5V x 2 AA Batteries
Weight 180g
Size 245mm x 70mm x 30mm
Padded Case Supplie

COMPLIANCE
GS 38 Compliant
BSEN 61243-3 2014
EN 61010-1 CAT IV 600V
EN 61010-1 CAT III 1000V

EAN Barcode 5060508210030

DescriptionSizeFormatGet File
TIS 851 New Instructions 5430242.pdfDOWNLOAD
ASSOCIATED PRODUCTS
TIS PUK Dual Instrument Pouch

TIS PUK Dual Instrument Pouch

TIS BKIT Safety Lockout Kit

TIS BKIT Safety Lockout Kit

TIS 1100 R2, R1, R2 Socket Adapter

TIS 1100 R2, R1, R2 Socket Adapter

TIS 15 Small Test Instrument Pouch

TIS 15 Small Test Instrument Pouch

TIS 849 Elite Voltage and Continuity Tester with Removable Test Leads

TIS 849 Elite Voltage and Continuity Tester with Removable Test Leads

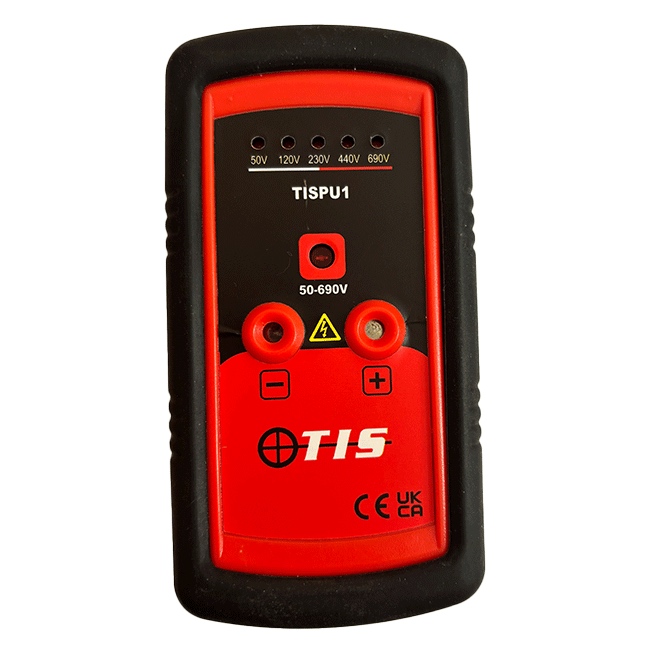

TIS PU1 Proving Unit for all Voltage Testers 0 - 690V
